Key takeaways
- Performance air intake for the BMW. Reduces intake restriction and improves airflow compared to stock system for increased power and throttle response.
- Measurable power and torque gains. Optimized filter, ducting, and piping deliver mid-range power improvements with quicker spool-up for turbocharged applications.
- Plug-and-play installation without tuning. Direct-fit design bolts onto stock mounting points; no cutting, fuel-system modifications, or check-engine light concerns.
- Validated for real-world use and durability. Mishimoto flow-bench tests all intakes at its USA facility and validates performance with factory ECU calibration and warranty.

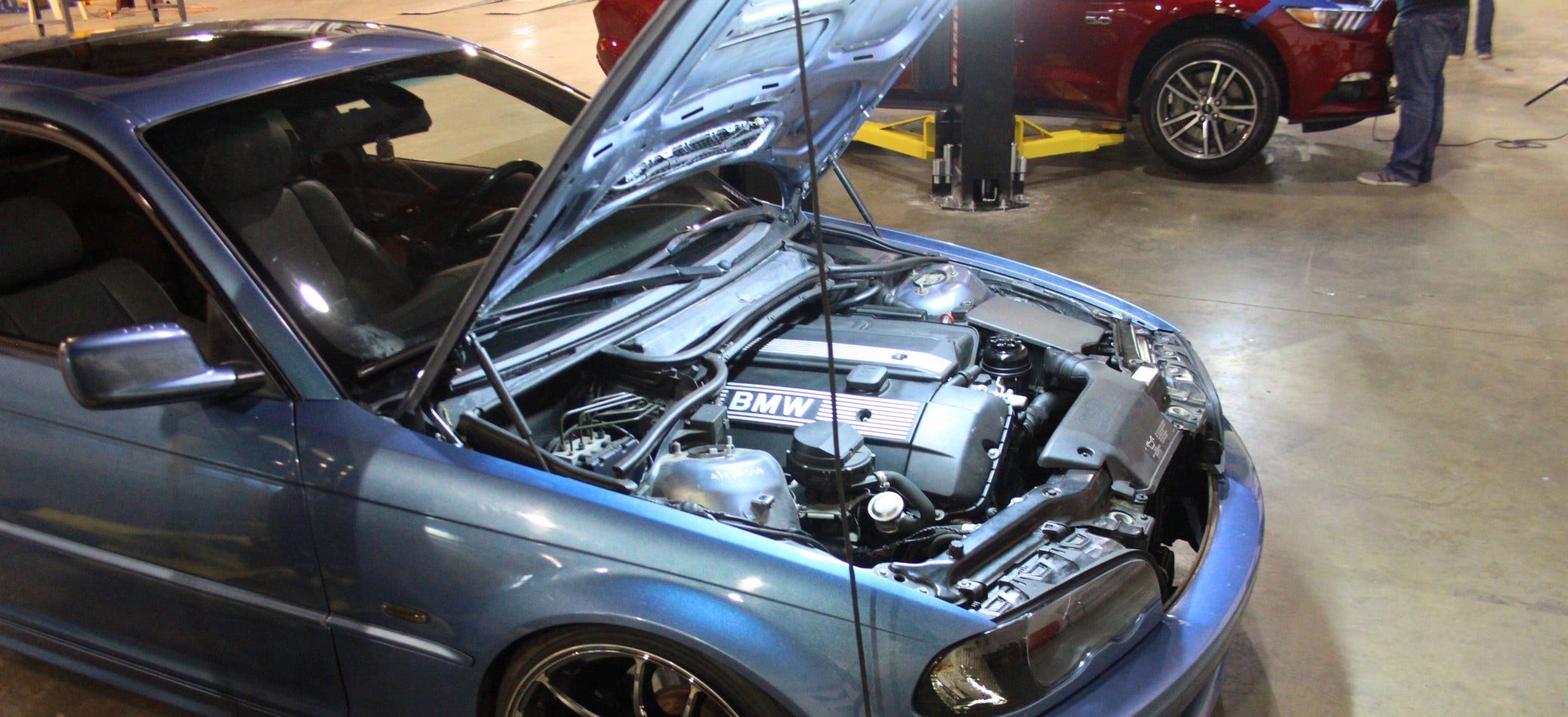

Our garage has been graced with the presence of a clean 2001 E46 330i, so we can now begin development on this E46 intake. Let's dive right in!
Stock System
The 330i stock intake system is similar to the 32X, the big difference being the size of the MAF housing. On the higher-output 330i models, this housing is larger so it can accept greater airflow needed by the more powerful, higher-displacement engine. To accommodate that larger diameter, our design will have a slightly enlarged opening on the heat shield. Everything else should fit right into place! Here are a few shots of the stock system we are working on.

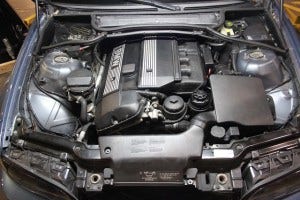

Aerial shot of the 330i engine bay

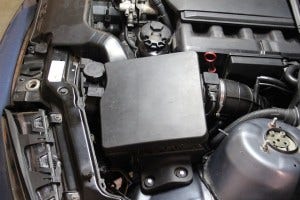

E46 intake stock system

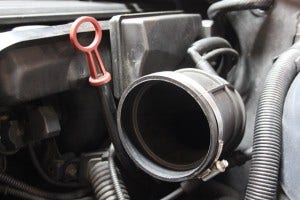

Up close shot of E46 parts
Design and Fitment
We needed to be sure that everything would fit correctly if we planned to use our previous shield as a base design. See below for how we mocked up fitment of the heat shield.

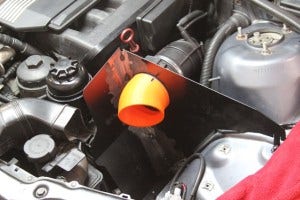

Fitment of prototype E46 parts

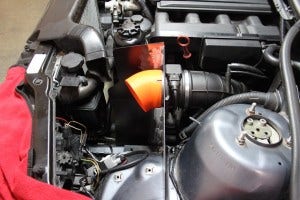

Fitment of prototype E46 parts
We knew going into this project that the inlet hole would need to be resized to accommodate the intake boot, so part of the heat shield was reworked to fit everything properly. Look below at the modifications as well as an in-house printed coupler - fits like a glove!
Prototype coupler fitting onto the E46 intake
Prototype coupler fitting onto the E46 intake
Coming Up!

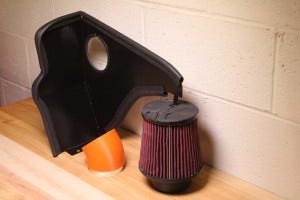

Check out the full kit below. This prototype application required a custom-made filter, as none of our other R&D filters fit properly. We even 3D printed our own cap!

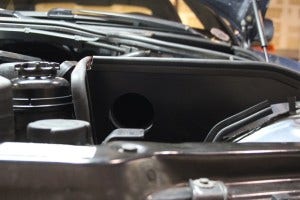

E46 intake ready for testing
Note that this is a prototype and does not reflect any finalized production components. Stay tuned for our upcoming dyno results, which will be ready to post very soon.
Thanks for reading!
-Diamaan
