The movement on the 2016 Ford Focus RS intercooler project may seem slow, but it couldn't be more alive. Our lead engineer for the project, at my request, has completed a plethora of testing configurations to get the most detailed amount of data possible. For the past three months, we have been rocking out on testing, testing, and more testing for the RS, the primary objectives being movement on the upcoming diff cooler and this front-mount intercooler. We know that the RS crowd loves their data, so we want to overload you with what's finally available.

I won't sugarcoat anything here. The update is going to be very data-intensive. I don't have any entertaining anecdotes, interesting fun-facts, or puns about staying focused to fluff this piece with. Today's discussion will be about our Nitrous Blue hatchback and the focus on data.

This RS was laced with monitoring systems to capture every facet of the performance
This RS was laced with monitoring systems to capture every facet of the performance

Temperatures

Let's start with temperature reduction, because this is a big one. With any intercooler, the main purpose is to reduce the amount of hot air forced induction carries to your engine. Cooler means denser, which generally means more power. This RS has a decently sized intercooler, but you can bet we can do better. During testing, we noticed that the factory intercooler heat soaked quickly while making dyno runs. By the end of our dyno runs, our engineer saw outlet temperatures of around 110˚F. A new thermal imaging camera we've been experimenting with helped confirm the temperature recordings.

Below are frame shots of dyno runs taken with our thermal camera. Hot areas are highlighted in brighter, red colors. As you can see, the stock intercooler lights up rapidly and the heat quickly spreads throughout the entire core. there is a lot of warm air your intake manifold breathes in, and it sort of goes against the purpose of an intercooler.

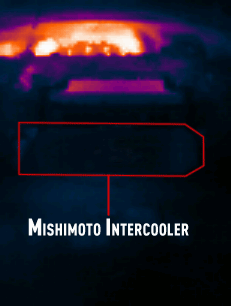

IC_Thermal_Stock (002)  MMINT-RS16

Our prototype core gets warm right at the inlet, but the air is immediately cooled through the rest of the intercooler when it makes its way to the outlet. This is mainly due to a core that is two inches thicker and an external fin surface area that is 214% larger stock. The heat transfer is so efficient here, reducing the outlet temperatures by over 40˚F, and, yes, we have the data to prove it.

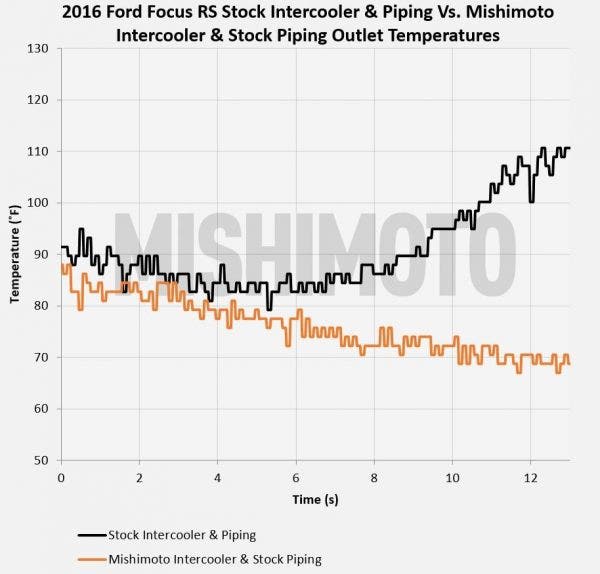

stock vs mishi ic stock pipes outlet temps

Our intercooler dropped the outlet temperatures to around 68˚F, which was nearly the ambient temperature in our garage. Now I know what you're thinking. This test wasn't done at speed, so how could this be an apples-to-apples comparison of what your prototype could do in the real world? I happen to have another project that crosses over, containing that exact information and backing our shop-simulated data.

Touching back on the sophisticated rear differential unit (RDU) cooler currently in the works, our shop RS took a trip to the track to test the prototype cooler unit. The car was equipped with pretty much everything we currently have on the market for it, which by design was important because our shop Stig really had to abuse the thing.

I wish I took this picture, props to my co-Automotive Journalist, Steven Bryson
I wish I took this picture, props to my co-Automotive Journalist, Steven Bryson

Our team took a day to go to Englishtown, New Jersey, running the RS at the local race track there. I won't go into the specifics of what they were testing with respect to the RDU cooler, but the lead engineer for that project engineered this intercooler, so what better time to test the limits of his prototype design?

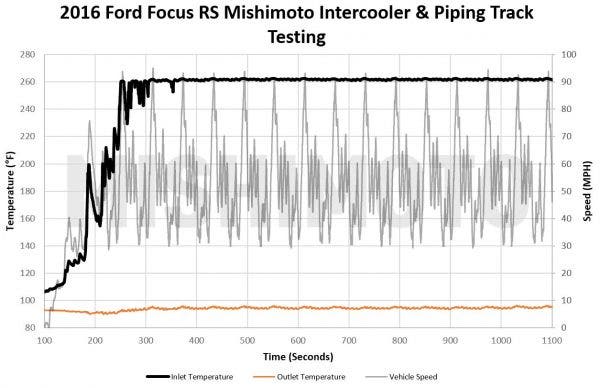

track intercooler datae

Disclaimer! The data includes runs done with our intake, intercooler, intercooler pipes, and a tune. While this isn't a true comparison to our shop-produced dyno data, this will still give you an idea of how we are validating our claims. As you can see, even at speed, we kept our outlet temperatures near ambient, which was around 88˚F, while the inlet temperatures consistently hovered around 260˚F. I'm showing this confirmation that the thermal image test will hold true in not just shop conditions, but in the most abusing of real-world driving as well.

Pressure and Power

Pressure drop needed analysis as well. Our core stabilized the somewhat turbulent inlet air pressures that surged through the stock core. It was a slight reduction, but something to note. Our graphs show that the pressures through our core are smoother. While this may not seem like a huge deal, straight and consistent airflow is vital for upgrades involving tunes and bigger turbos. It will play a big part in seeing the gains you want when you upgrade for more power.

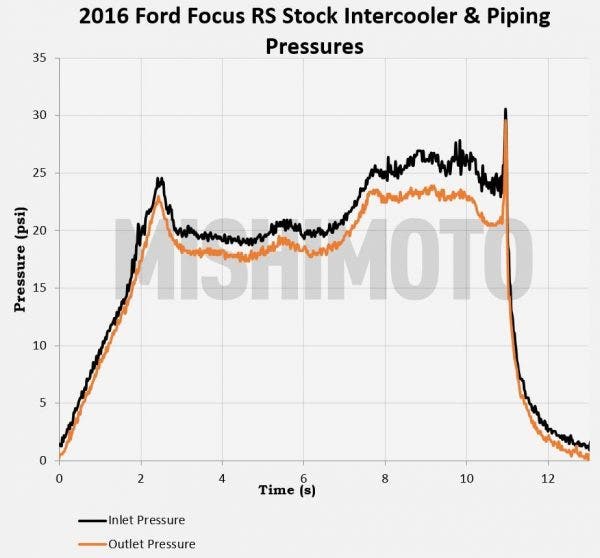

stock ic pressuresmishi ic stock piping pressures

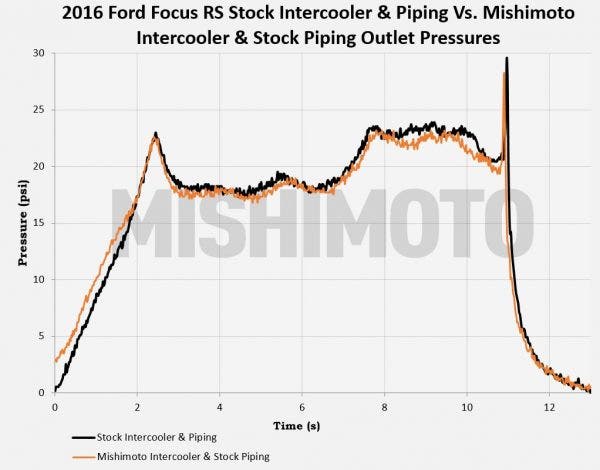

And see below for an overall comparison between both plots for outlet pressures.

BLOG REPLACEMENT

Slight, yet important pressure improvements helped us make a nice bit of power over stock. With our intercooler prototype and stock piping, we saw gains of 7hp and 8 ft-lbs of torque. What this tells us is that efficiency has improved. It's helping the engine make power, which isn't always a guarantee on cars that base their air intake readings off manifold pressure, like this RS, compared to cars that get their readings via mass-airflow sensors.

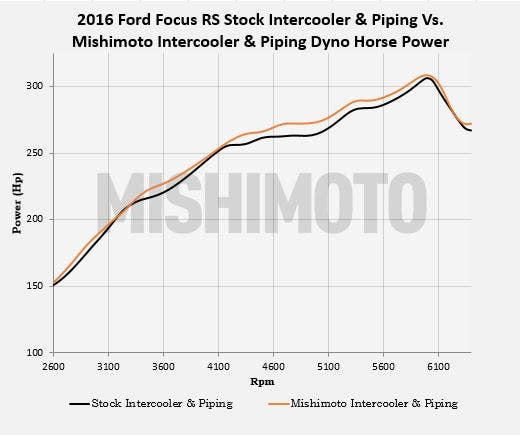

All Stock vs all Mishi horse power

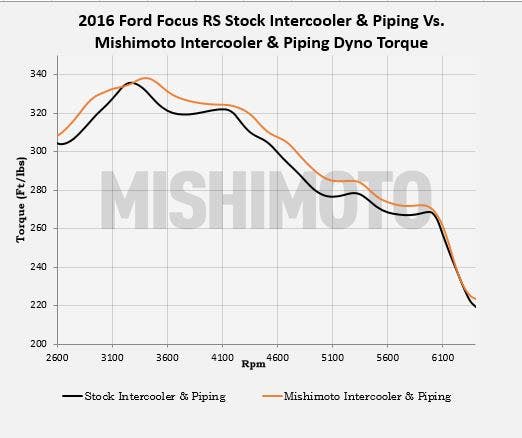

All Stock vs all Mishi torque

While we are already seeing these gains on an RS with a base tune, we'd be curious to see how it will hold up to a tune. It isn't something we have time to officially test though. The presale for this intercooler is slated to start within the next two weeks! Stay tuned for the pricing information and official release date.

-Diamaan
