Kia has made their big splash in the automotive industry with the Stinger's launch, and we wanted to make sure that we made ours right along with them. We've been looking for the perfect stone to chuck into this transcendental pond and we've finally found it, coincidentally in the shape of a massive intercooler. Since we've already reviewed the physical details of our new design in the last post, let's dive right into the testing.

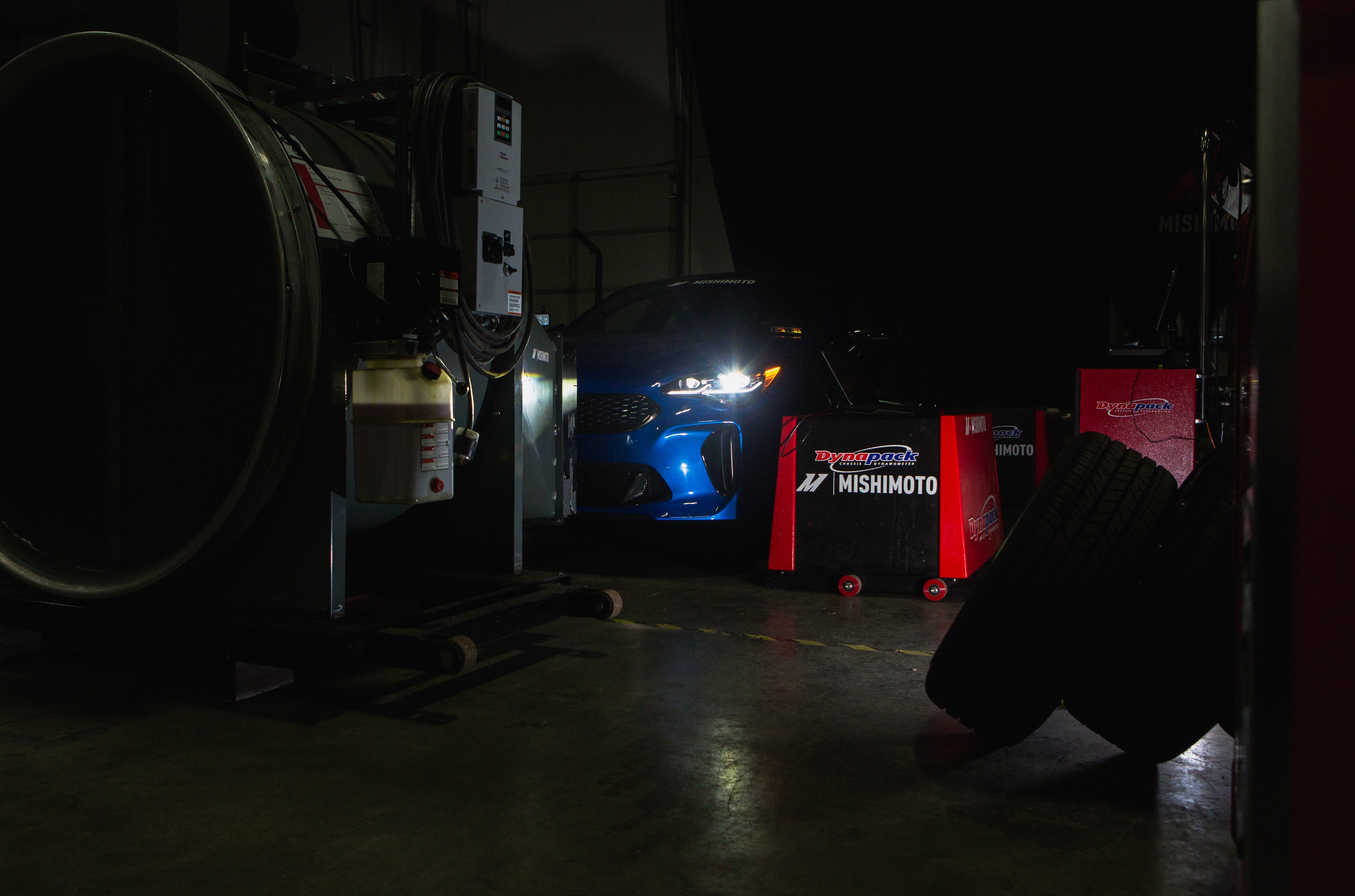

Cooling power is key for the intercooling system, especially once the boost gets turned up. I can only assume you're here to see how this kit performs under pressure, so we strapped our Stinger up to our Dynapack system for a torture test in the name of science. Our testing consisted of two stages in order to get a good look at just how well our intercooler kit performs against the stock unit.

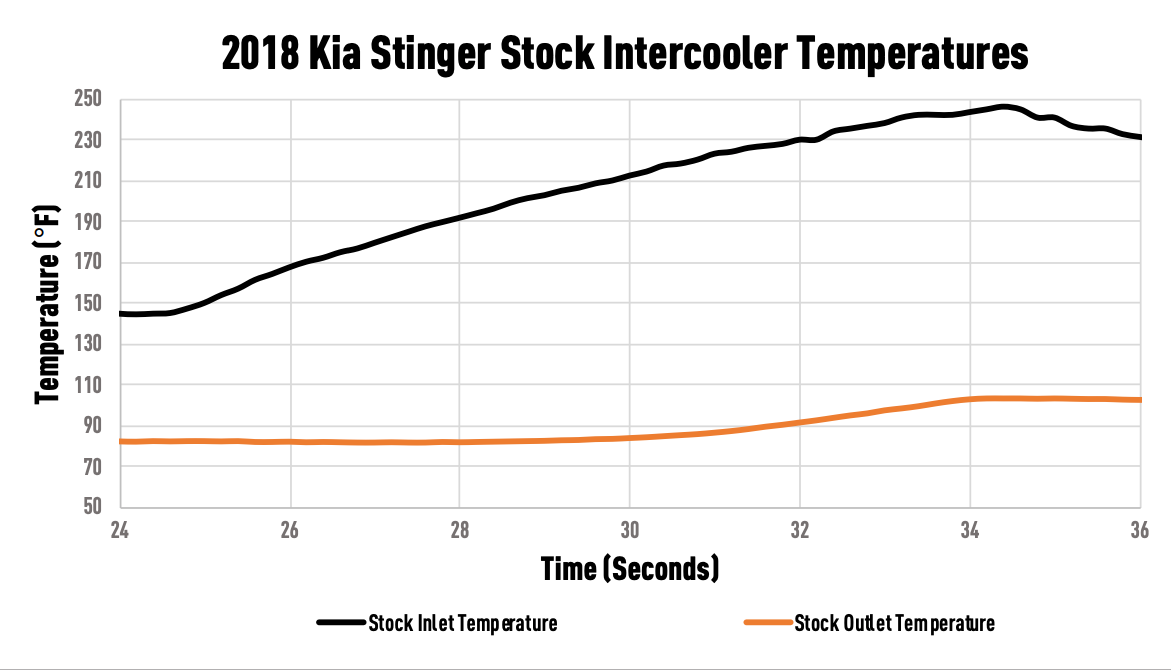

First up, we have our power pulls. In this test we performed a single power pull on our dyno in order to get a focused snapshot on the difference between the two kits. For this first round, the vehicle was brought to operating temperature (185°F) by idling on the dyno, and a single pull was performed giving us an immediate look at the performance of the two intercoolers. When repeating this test we made sure to let the vehicle cool back to the operating temperature before running another pull. With the shop's ambient temperature of 70°F recorded, it was time to start the tests.

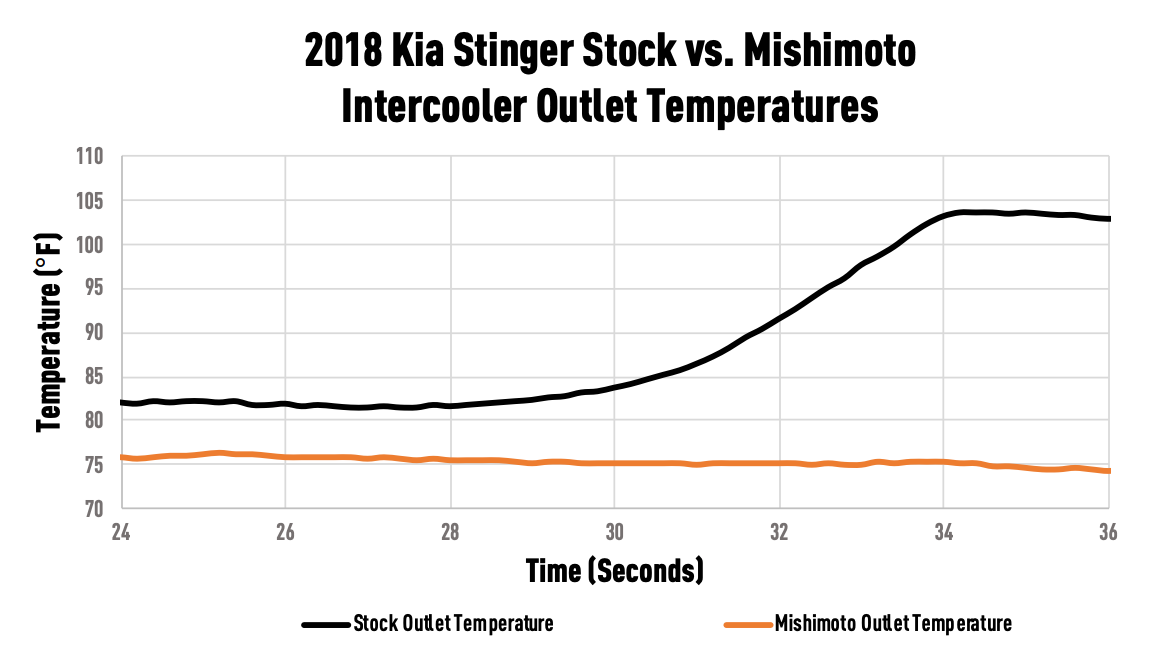

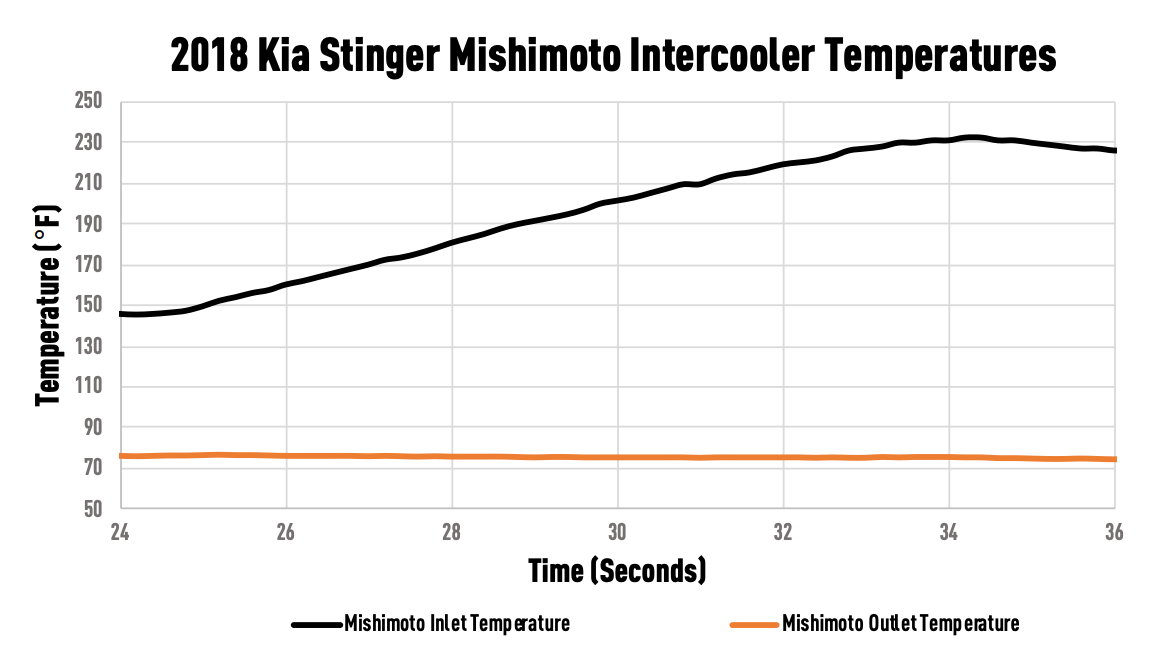

When placed side by side, the difference between the outlet temperatures is much more apparent, with our intercooler dropping the temperature by 29°F.

Since I'm sure many of you don't live your lives a quarter-mile at a time, we also devised a test that would simulate daily driving, but under the harshest conditions. For our heat soak test, we started out with the same warm-up procedure, and the same measurement of the shop's ambient temperature (both in method and reading). This time, however, instead of giving the Stinger a break between runs, we ran 6 consecutive pulls for a gauge on the effect of heat soak for both cores.

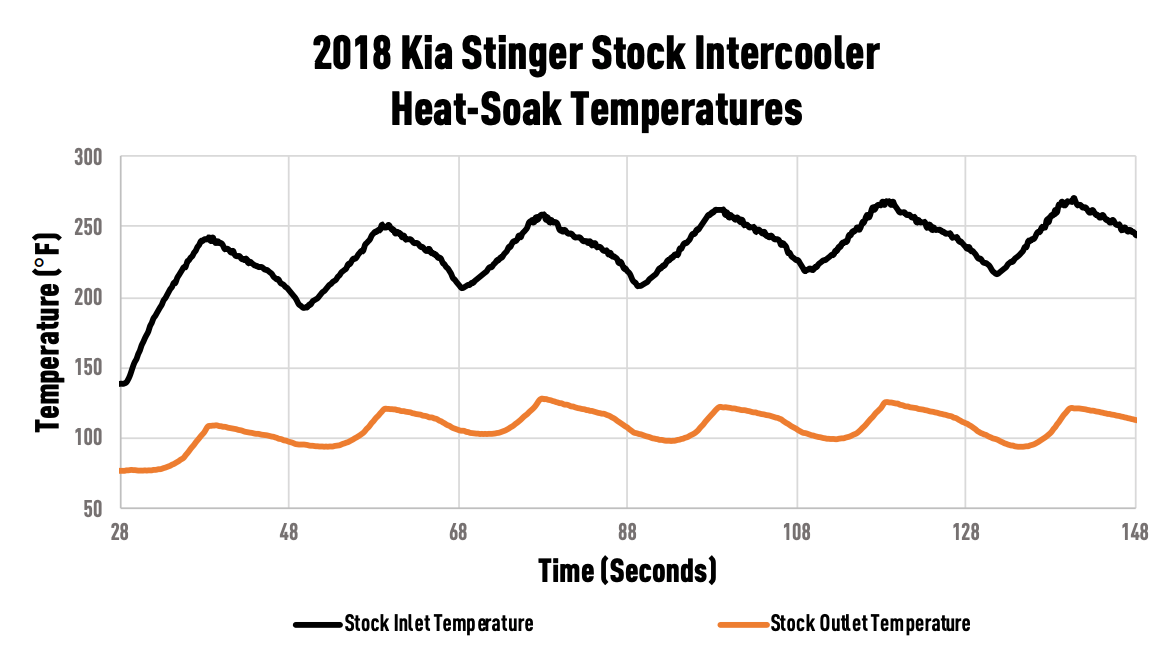

The effect of heat soak is much more apparent once we run more than one pull on the stock kit. Note that the inlet temperature is influencing the outlet temperatures much more in this test.

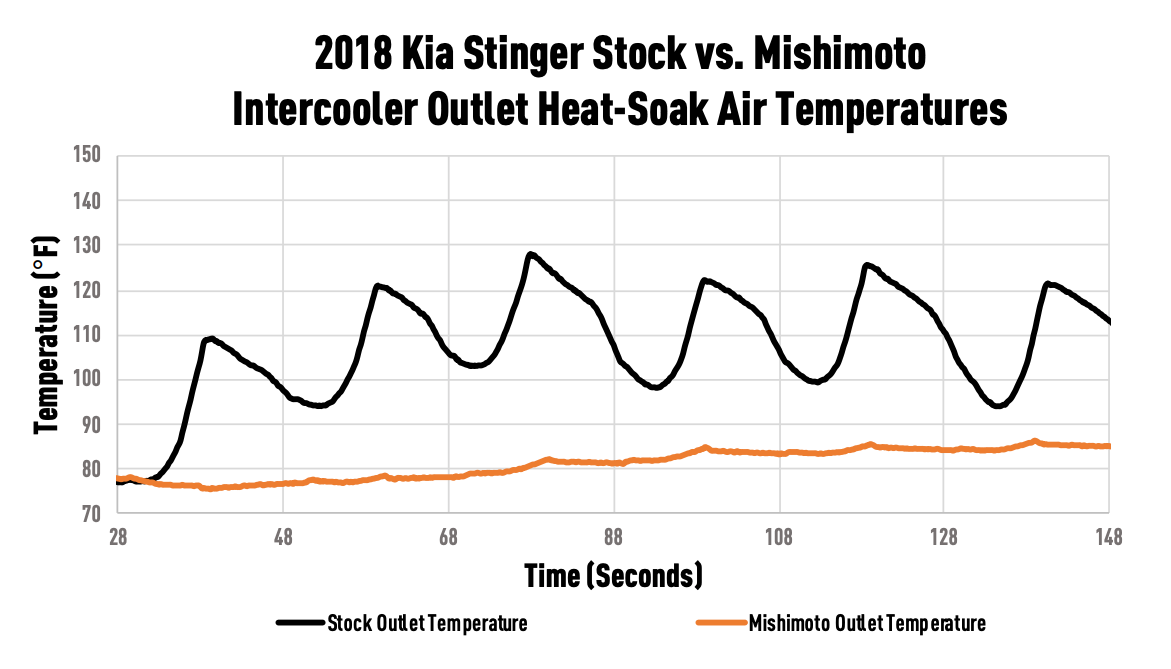

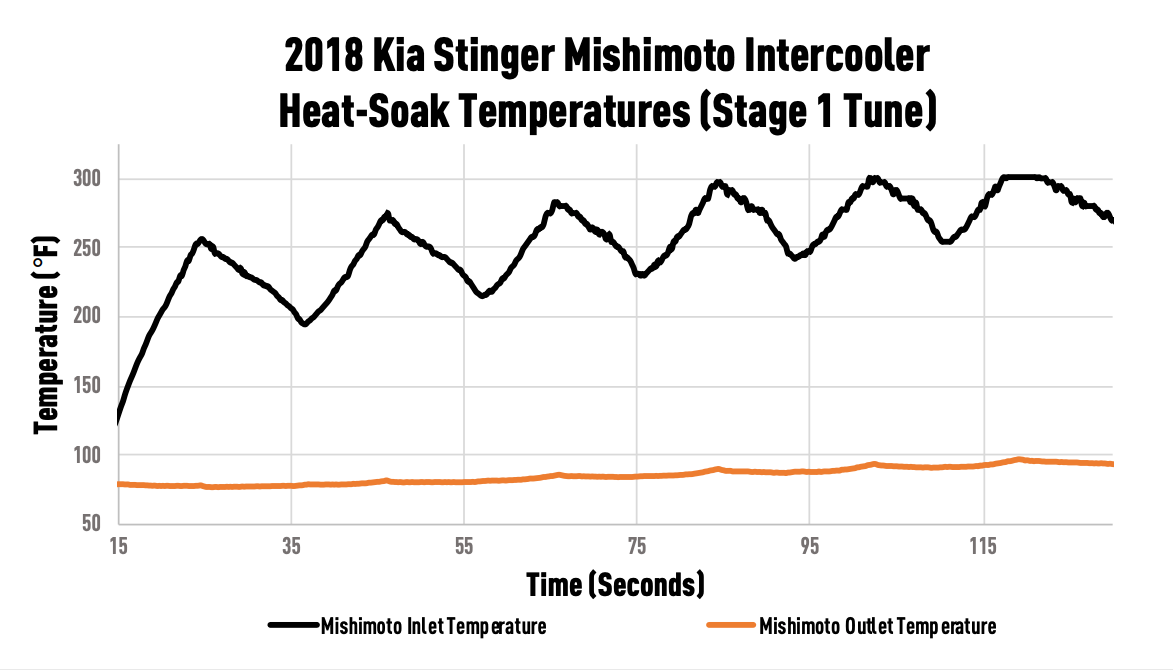

Even with the inlet temperature topping 300°F, our larger, and denser core is much more effective at warding off the effect of heat soak. Through the 6 consecutive runs, our outlet temperatures essentially flatline without topping 90°F.
Under closer examination, you can see that there is some effect on our outlet temperature, but it's much more consistent compared to the stock intercooler setup. Since the Stinger utilizes a speed density tune, the consistency in air temperature is vital for a smoother delivery of power. On top of the more consistent temperature delivery, we were able to pull an average of 40°F from the outlet with our new design.

Our testing didn't stop there. Since the main purpose of upgrading your intercooler is to build a better foundation for performing efficiently after tuning, we wanted to ensure that our kit was operating as designed with increased boost pressure. We opted to run a stage 1 map on our Stinger, which turned up the boost on the Lambda II, and churned out approximately an additional 50 whp. With the map loaded on the ECU, we ran the same series of tests between the stock setup and our kit, starting with the power pulls.

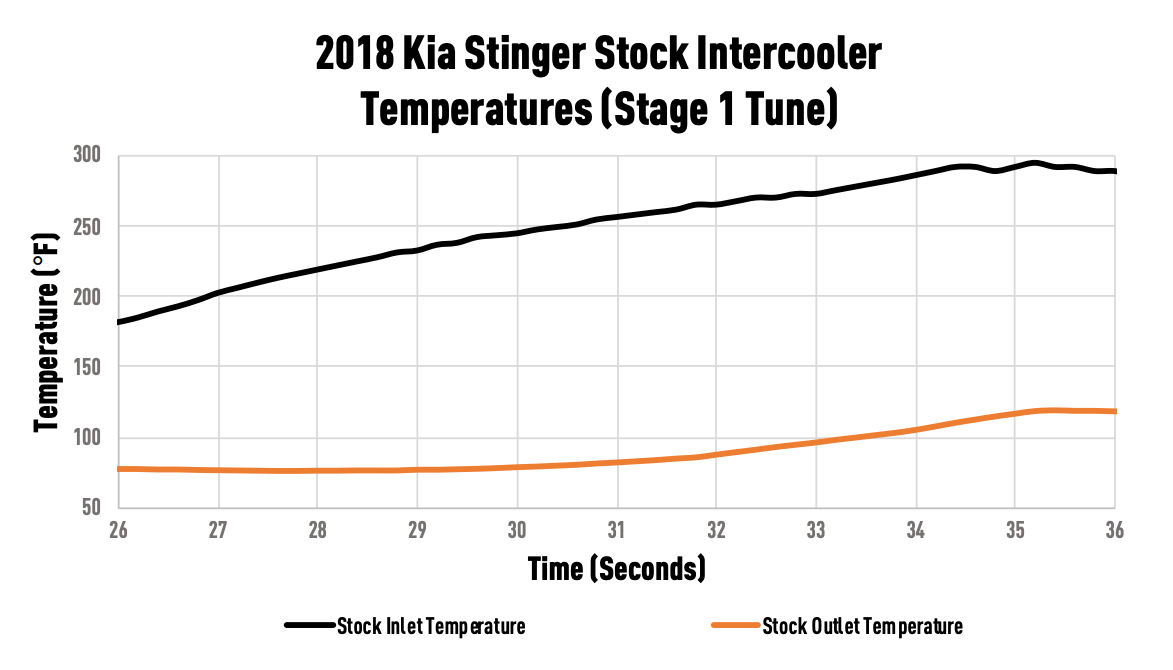

More boost means more heat. From the data recorded from this test, the stock core did a remarkable job at managing the added temperature, though we noted a climb in the outlet temperature toward the end of the pull.

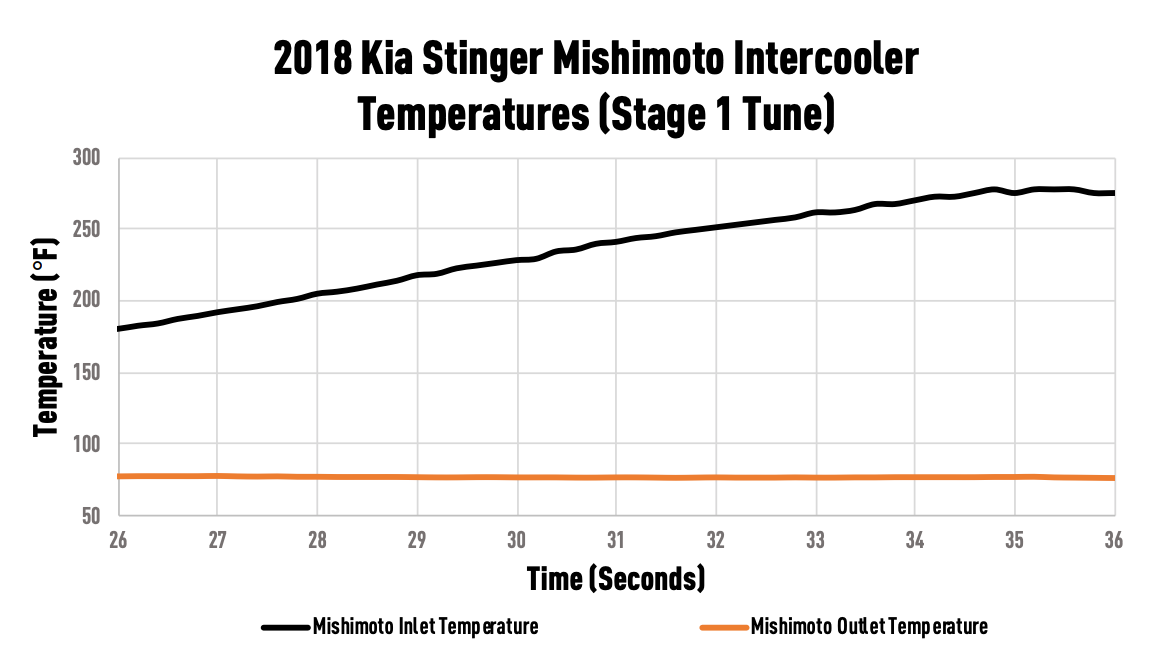

With our intercooler installed in conjunction with the stage 1 map, we recorded a flatline outlet temperature which topped out just a few degrees over the recorded ambient temperature.

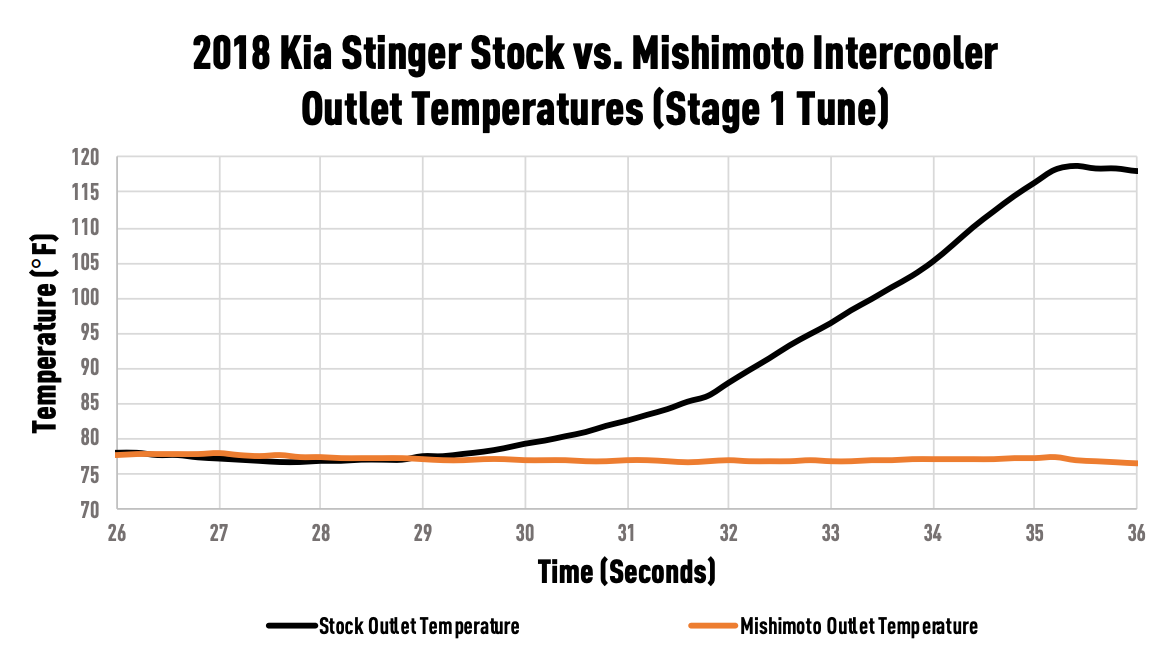

Once we place the testing results next to each other, the effect of the tuning is much more apparent. With the map running and the intercooler installed we recorded a 41°F drop in temperature during this test.

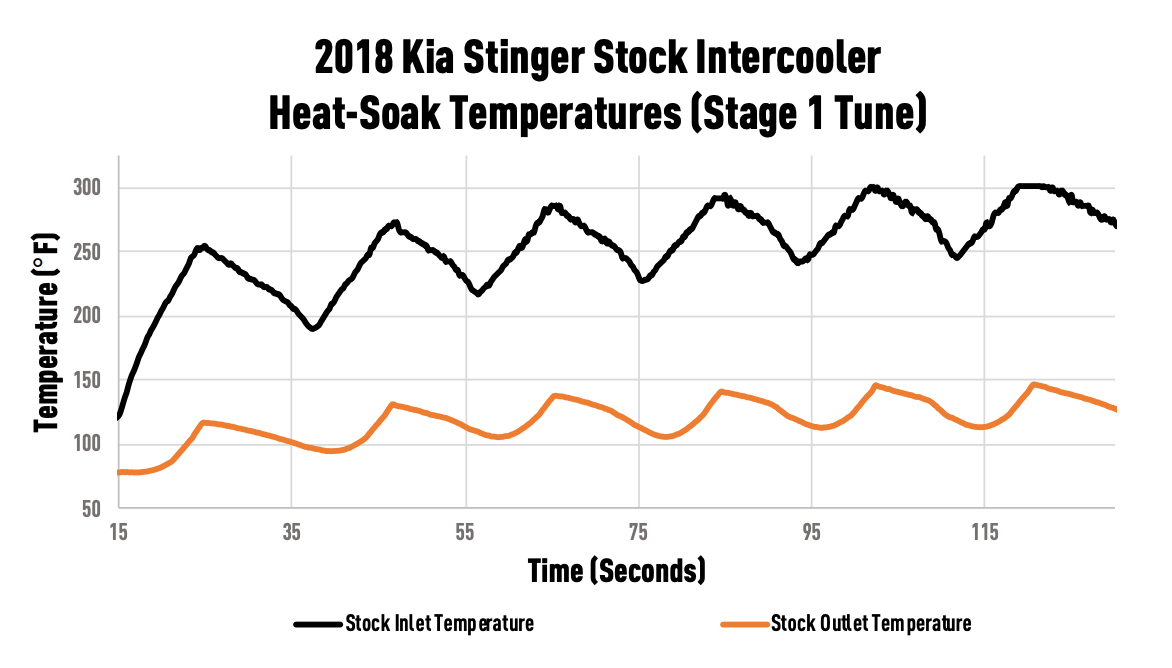

Next up was a repeat of the heat soak test. This round of testing will give a more realistic look as to how well the Mishimoto kit would perform on a daily basis in conjunction with a modified Stinger.

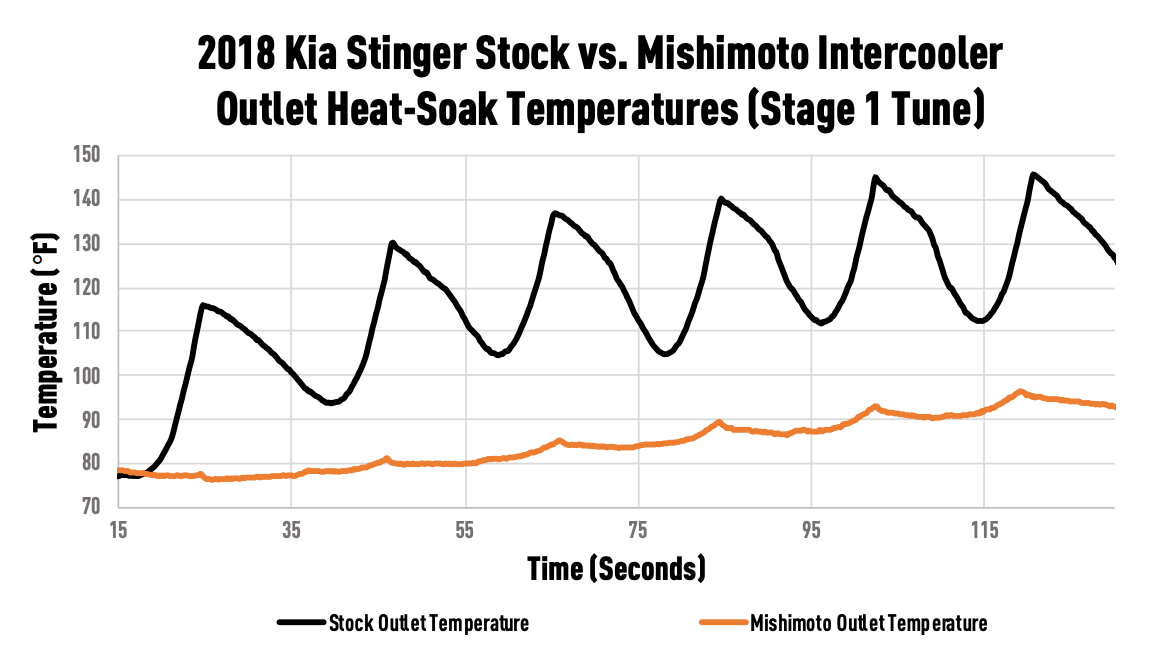

This round of testing clearly illustrates the need for an improved intercooler once a tune is involved. We noted a 50°F reduction in outlet temperatures compared to the stock unit, along with a more consistent management of the heat.

Extra Sting

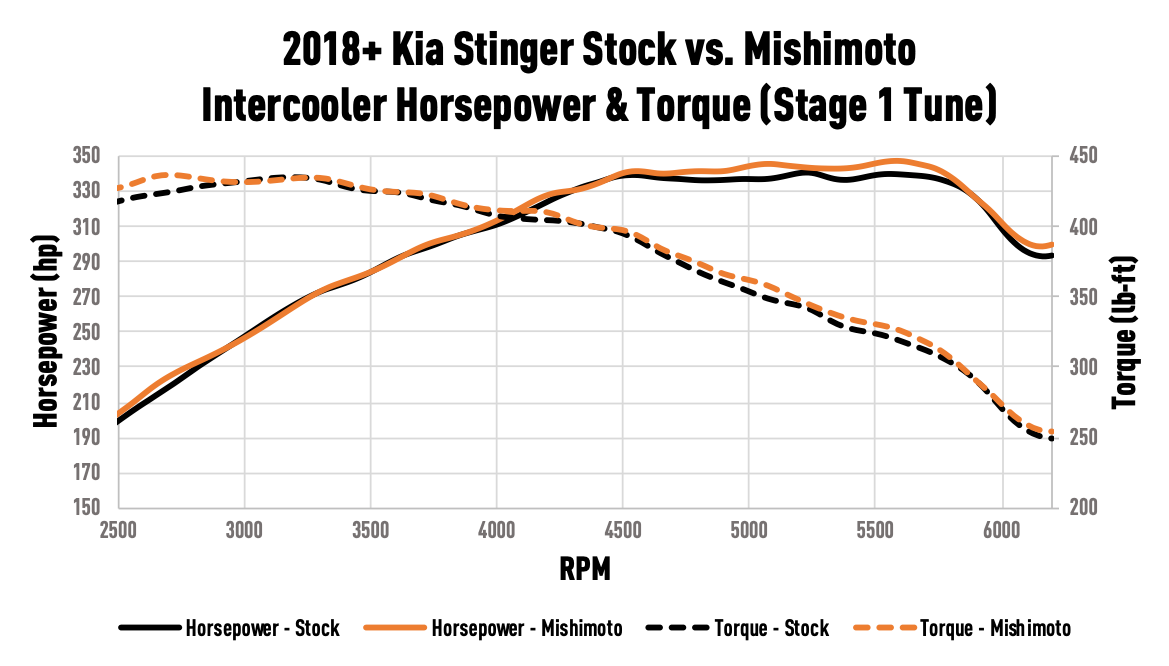

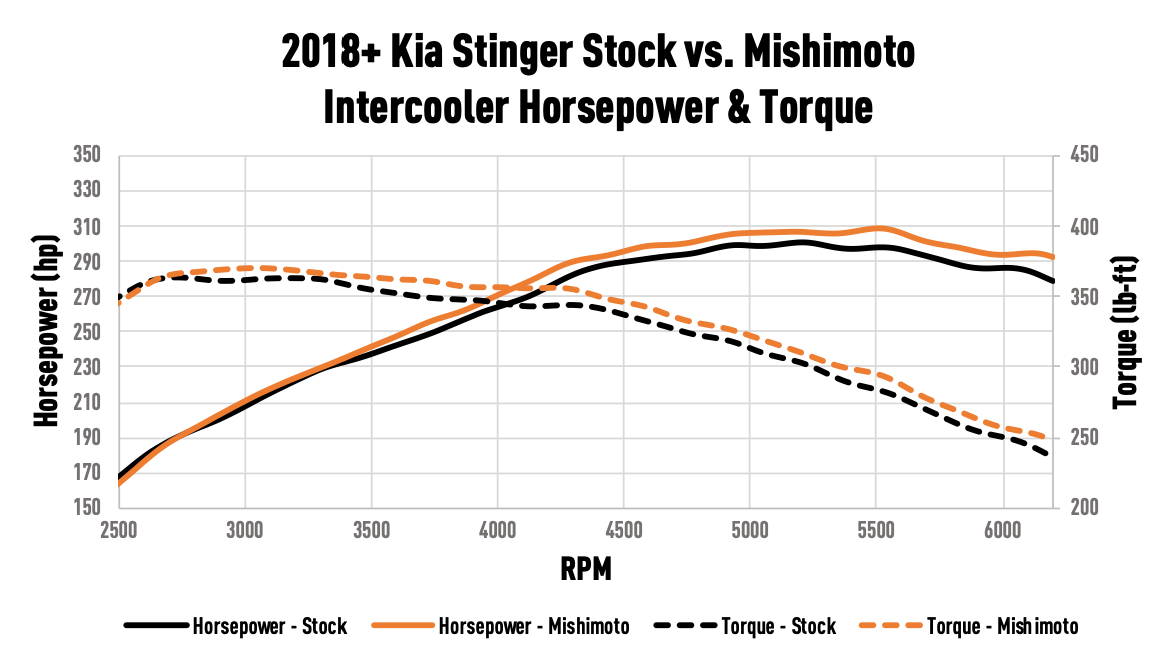

Yes, the main goal with the creation of this intercooler kit isn't necessarily to add power, but rather improve the platform for bigger power numbers down the line. However, the two main attributes that we're improving on, cooling and flow, often are the means of cramming some extra horses under the hood. That said, in our testing we did note a power gain over the stock tuning of 8 whp and wtq, and an additional 6 whp and 8 wtq on top of the Stage 1 map.

Pressure Check

Maintaining pressure is also just as important when it comes to your upgraded intercooler kit. Increasing the size and density of the components is bound to mean differences in pressure, but our engineer already had that in mind. By choosing the sweet spot in the piping size, especially when it came to the Stinger's trademark merger section on the hot-side of the piping, our engineer was able to keep the system pressure in check.

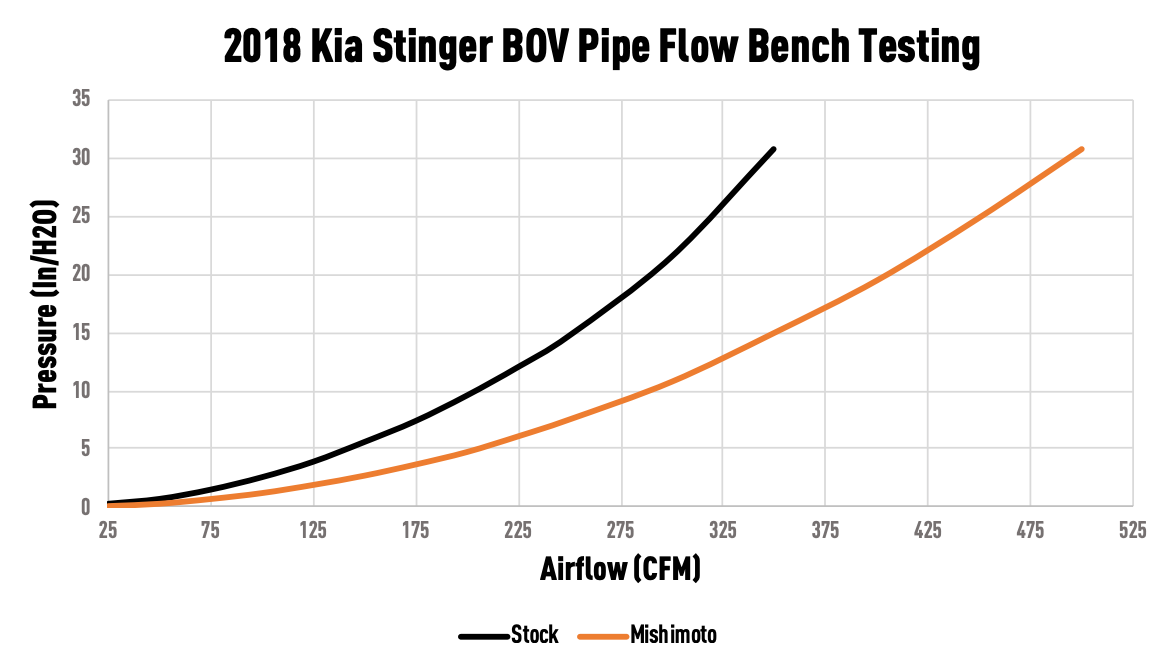

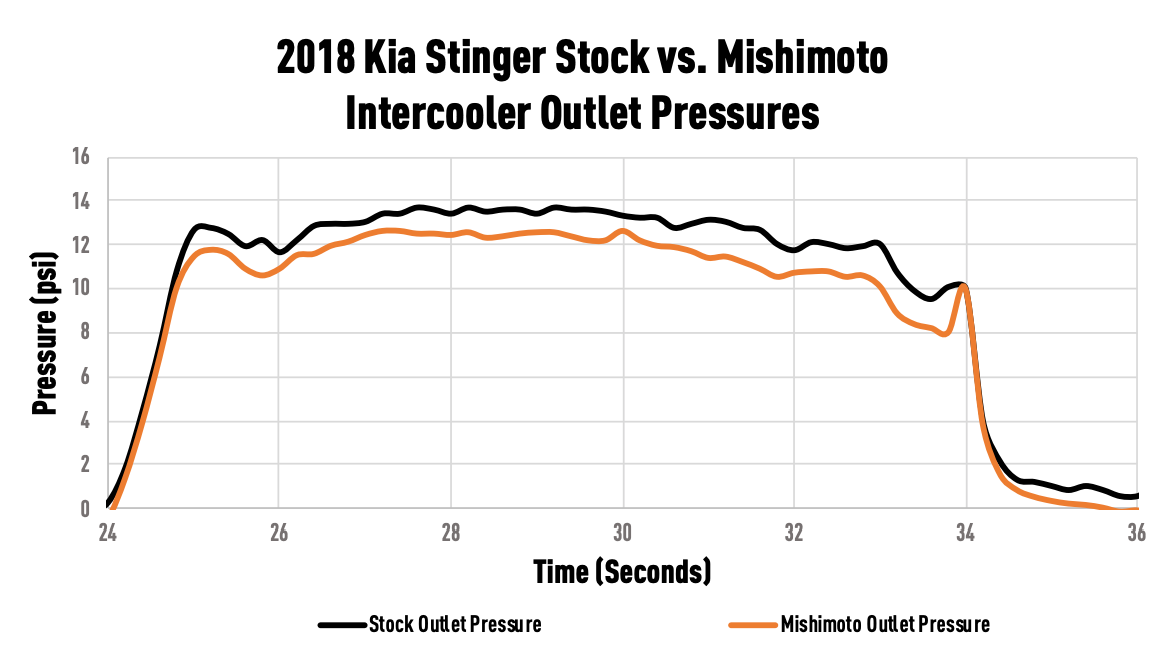

In just this section alone we were able to remove a choke point and increase the flow from the turbos to the intercooler by 51% over the stock components. Combined, our full kit, was able to maintain only a 1.5 PSI drop compared to the stock kit.

Since the Stinger started rolling off of the lots, owners have been questioning how to make their individual splash bigger. Kia designed and delivered a solid platform of speed, but in order to go further, that platform needed some work. With the Mishimoto Performance Intercooler Kit installed, not only will that splash be bigger, but given the cooling properties, that splash comes with some ice crystals as well. Make sure to stay tuned for our presale coming soon.
