Cold-Side Intercooler Pipe, fits Ford Focus RS 2015+

Model

MMICP-RS-16CBK

€209.00 (Excl. Duties/VAT)

Quantity

Cold-Side Intercooler Pipe, fits Ford Focus RS 2015+

Add your photo

Model:

MMICP-RS-16CBK

Cold-Side Intercooler Pipe, fits Ford Focus RS 2015+

€209.00 (Excl. Duties/VAT)

$Login or create an account to on this product.

Key Features

Features

Direct fit for the 2015+ Ford Focus RS
Silicone construction absorbs the stresses of excessive engine movement
Improves heat and pressure tolerance
46% less pressure drop than stock cold-side pipe
31% increase in internal volume compared to stock cold-side pipe
Fits both stock and Mishimoto Focus RS intercooler
Mishimoto Lifetime Warranty

See all features

Installation Difficulty: Easy

Key Features

Direct fit for the 2015+ Ford Focus RS
Silicone construction absorbs the stresses of excessive engine movement
Improves heat and pressure tolerance
46% less pressure drop than stock cold-side pipe
31% increase in internal volume compared to stock cold-side pipe
Fits both stock and Mishimoto Focus RS intercooler
Mishimoto Lifetime Warranty

See all features

Product Description

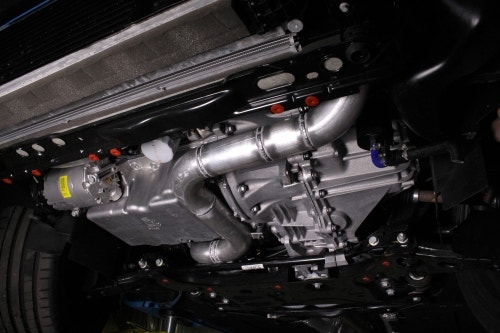

Feed more air into the 2.3L EcoBoost engine of your 2016-2018 Ford Focus RS with Mishimoto's newly released cold-side intercooler pipe. This design increases the internal volume by 31% over its stock counterpart and has a 46% pressure drop improvement. The design is flexible enough to make install a breeze, yet durable enough to withstand just as much increased boost pressure abuse as an aluminium counterpart. It is made of five-ply silicone and reinforced with steel wire to prevent any misshaping under vacuum. It is also one solid piece through and through, eliminating the need for couplers. Nobody likes failing couplers that cause boost leaks, anyway. This hose is available in black, comes with stainless steel T-bolt clamps, and installs in under 30 minutes. Of course, it is also backed by our coveted Mishimoto Lifetime Warranty.

More Information
Applications	2016-2018 Ford Focus RS
Engine Codes	2.3L EcoBoost GTDi I4
Chassis Codes	C346
Overall Length (in)	17.13
Inlet (in)	2.75
Outlet (in)	2.5
Installation Notes	27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

Compatible Vehicles

Installation Guides

Installation Guides

(Size: 13.3 MB)

Installation Guides

Downloads

Downloads

Engineering Report

Engineering Report

(Size: 1.6 MB)

Engineering Report

Purchase Includes

(1) Wire-reinforced Silicone Hose
(1) T-Bolt Clamp
(1) High-Torque Worm Gear Clamp
Mishimoto Lifetime Warranty
