Intercooler, fits Nissan Titan XD 5.0L Cummins 2016-2019
- Direct fit for the 2016+ Nissan Titan XD
- Intercooler features all-aluminum cast end tanks
- Reduces turbo stress and extends life
- Intercooler available in Sleek Silver and Stealth Black
- Fits with Mishimoto Performance Aluminum Radiator
- 42% increase in core volume over stock
- 45% increase in external fin surface area
- Mishimoto Lifetime Warranty
Installation Difficulty: Medium
- Direct fit for the 2016+ Nissan Titan XD
- Intercooler features all-aluminum cast end tanks
- Reduces turbo stress and extends life
- Intercooler available in Sleek Silver and Stealth Black
- Fits with Mishimoto Performance Aluminum Radiator
- 42% increase in core volume over stock
- 45% increase in external fin surface area
- Mishimoto Lifetime Warranty
Product Description
The Mishimoto Titan XD performance intercooler features larger-than-factory intercooler outlets for increased flow. Included with this intercooler are two silicone boots with DuraCore™ technology and our signature Constant Tension T-bolt Clamps for consistent and reliable holding power. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel and oil. This effectively increases the life of our boots by preventing leaks and blow-outs.

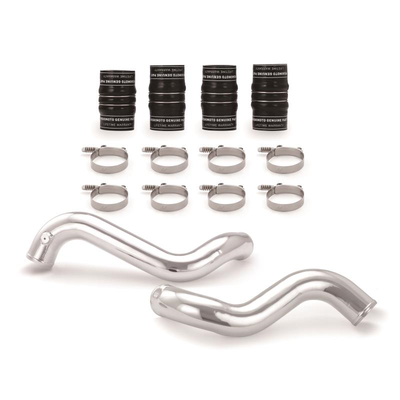

Save time and money by upgrading to the full Mishimoto Titan XD intercooler and piping kit, which pairs this intercooler with the Mishimoto Titan XD pipe and boot kit at a special discounted price. Whether your Titan XD is stock or modified, trust Mishimoto and our line of Titan XD performance parts to keep your Nissan cool. This Titan XD performance intercooler is offered in Sleek Silver or Stealth Black, and like all of our Titan XD performance parts, comes backed by the Mishimoto Lifetime Warranty.
TECH SPECS
| Applications | 2016-2019 Nissan Titan XD 5.0 Cummins |
|---|---|
| Engine Codes | IS-V |
| Note | The two aluminum spacers included with this kit are for those of you installing your Mishimoto intercooler with your stock radiator. |
| Overall Length (in) | 42 |
| Overall Height (in) | 19 |
| Core Type | Bar-and-Plate |
| Core Thickness (in) | 3 |
| Core Length (in) | 35 |
| Core Height (in) | 19 |
| Installation Notes | 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). |
Downloads
Purchase Includes
(2) Aluminum Spacers
(2) Silicone Boots with DuraCore Technology
(4) Constant-Tension T-Bolt Clamps
Mishimoto Lifetime Warranty
Note:
The two aluminum spacers included with this kit are for those of you installing your Mishimoto intercooler with your stock radiator.Preparation is an elusive concept. No matter how much time you spend getting ready, you find yourself at the event remembering everything you did not bring. Perhaps this applies more to me, the least prepared individual of all. I constantly find myself in situations where if I had prepared, I could have been ahead of the eight-ball rather than feeling like it was tumbling down a hill after me. For instance, I once showed up to a track day without a tire pressure gauge, rookie mistake. Since then, I have learned the merits of taking some extra time to be prepared.
The Titan XD is no different. The truck is relatively new, so many won't choose to modify it just yet, but we have a feeling that the XD has big things in its future. That is why we decided to be prepared with our intercooler.
" width="640" height="360">
We have been working on the Titan XD for quite some time now. We have gone through a variety of products like the intercooler pipe kit, coolant filtration kit, and exhaust. Now we are down to the bread and butter of our Titan XD parts: the intercooler.
When we begin projects, we like to start by evaluating the stock component and looking for areas where we can make improvements. The stock intercooler in the Titan is fairly sizeable and features cast aluminum end tanks, which we don't normally see on stock intercoolers. Nissan has started off on the right foot with this intercooler. Still, we are confident that we can take it a few steps further with our intercooler design.
Stock Nissan Titan XD intercooler
