Performance Air Intake, fits Nissan 350Z 2003-2006
Performance Air Intake, fits Nissan 350Z 2003-2006
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
- Direct fit for 2003–2006 Nissan 350Z
- Dyno-proven maximum gains of up to 10 whp and 13 wtq on the stock tune
- High-flow air filter with integrated velocity stack provides sharp throttle response and improves airflow
- 271% increase in air filter surface area
- Black powder-coated heatshield seals perfectly to the air inlet duct on the front bumper and draws cold air from the front of the vehicle
- Heatshield comes with protective rubber strips to eliminate noise causing vibrations
- No tuning required
- Highly aggressive intake tone under acceleration
- Installs in less than 30 minutes with no need to remove the front bumper or splash guard
- Fits with stock or Mishimoto Nissan 350Z Radiator
- Designed in Delaware, USA and filter made in USA
- Mishimoto Lifetime Warranty
- CARB EO #: D-759-1
Installation Difficulty: Easy
CARB EO#: D-759-1 - Direct fit for 2003–2006 Nissan 350Z
- Dyno-proven maximum gains of up to 10 whp and 13 wtq on the stock tune
- High-flow air filter with integrated velocity stack provides sharp throttle response and improves airflow
- 271% increase in air filter surface area
- Black powder-coated heatshield seals perfectly to the air inlet duct on the front bumper and draws cold air from the front of the vehicle
- Heatshield comes with protective rubber strips to eliminate noise causing vibrations
- No tuning required
- Highly aggressive intake tone under acceleration
- Installs in less than 30 minutes with no need to remove the front bumper or splash guard
- Fits with stock or Mishimoto Nissan 350Z Radiator
- Designed in Delaware, USA and filter made in USA
- Mishimoto Lifetime Warranty
- CARB EO #: D-759-1
Product Description
TECH SPECS
| Air Filter Part Number | MMAF-3005S |
|---|---|
| Filter Diameter | 3 |
| Chassis Codes | Z33 |
| Engine Codes | VQ35DE |
| Applications | 2003-2006 Nissan 350Z |
| Note | This intake only fits 2003-2006 350Z engines with the VQ35DE engine only. This will not fit 2007-2008 models with the VQ35HR Engine. Power gains may vary depending on any other engine modifications done to the vehicle, atmospheric conditions, ambient temperature, and the mileage of the vehicle. You may or may not witness the maximum published gains from this air intake. Filter re-oil is not included with the lifetime warranty. |
Purchase Includes
(1) High-Flow, Oiled Filter
(1) Heat Shield w/ Protective Edging
(1) 60-80mm Worm-Gear Clamp (included with air filter)
Hardware
Mishimoto Lifetime Warranty
Note:
This intake only fits 2003-2006 350Z engines with the VQ35DE engine only. This will not fit 2007-2008 models with the VQ35HR Engine.Power gains may vary depending on any other engine modifications done to the vehicle, atmospheric conditions, ambient temperature, and the mileage of the vehicle. You may or may not witness the maximum published gains from this air intake.
Filter re-oil is not included with the lifetime warranty.
Interested in purchasing our awesome intake system? Check out our product page linked below!
Mishimoto Nissan 350Z Performance Air Intake!
Last time we dyno tested our assembled prototype for sound and performance. Maximum gains were achieved in the midrange of the rpm band to the tune of 10 whp and 13 wtq. These are impressive numbers. We saw gains from the start of the pull through redline, averaging around 5-7 whp/wtq throughout.
The sound produced by the VQ with our intake installed is nothing short of awesome! The large air filter and reduced restriction produces a deeper, amplified induction tone that sounds quite satisfying from behind the wheel.
Our last task is to fully model our design in Solidworks and construct our final prototype for fitment confirmation. As we mentioned last time, minor tweaks were needed to perfect fitment.
Intake 3D
Interested in purchasing our awesome intake system? Check out our product page linked below!
Mishimoto Nissan 350Z Performance Air Intake!
With our initial design completed, it is time to strap our Z to the dyno and make a few pulls. We would be evaluating power output and engine sound, both of which are important aspects of our Nissan 350Z intake design.

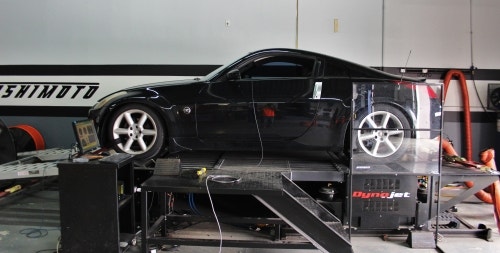

Dyno Testing

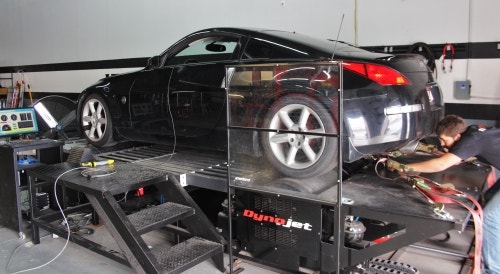

Setting vehicle up for Nissan 350Z intake testing
Once we had the car lined up properly, we were ready to make some pulls!
Interested in purchasing our awesome intake system? Check out our product page linked below!
Mishimoto Nissan 350Z Performance Air Intake!
We're back with more grinding, fitting, cutting, and welding. The fabrication of our intake prototype for the Nissan 350Z continues!
Airbox Fabrication
When we left off, we had fabricated three sides of our airbox and created a 3D model for our MAF-to-filter adapter. The next plan was to continue designing and constructing our airbox, starting with the base.
Template for 350Z intake airbox base
We mapped out our base on
Interested in purchasing our awesome intake system? Check out our product page linked below!
Mishimoto Nissan 350Z Performance Air Intake!
The Nissan V6 is a familiar animal here at Mishimoto. We have designed various cooling components for this model, and several of our employees have owned or presently own a Nissan of this particular vintage. After covering the cooling system of the Z, we decided it was time to turn our attention toward a power-adding component.
The first product we want to tackle is a performance 350Z air intake system. Over the past couple years our team has been designing and testing intake systems for a variety of vehicles, including the Subaru WRX/STI, Subaru BR, BMW E46, and Mercedes CLA45 AMG, to name a few. Each project introduces a unique challenge and an opportunity for our team to produce additional vehicle power and improve intake sound and volume.
