Cool down your Coyote. The Mustang GT's Coyote engine is a feat of engineering, but every engine needs to maintain proper engine temperatures. After whining the engine out to its 7,000 RPM redline during some hot laps at the track engine temps will start to rise. The Mishimoto Mustang GT radiator is up to the challenge of keeping temperatures down, even after consecutive laps with the peddle mashed to the floor.
The 52mm, 3-row core is a massive upgrade over the stock radiator. With a 77% increase in coolant capacity over the stock performance package radiator, overheating won't be an issue. Launch your GT down the strip as much as you want, and you'll have the peace of mind that coolant temperatures will be right where they're supposed to be. This high-quality Mustang GT radiator is backed by the Mishimoto Lifetime Warranty to ensure only the best of the best.
Model:
MMRAD-MUS8-15
Performance Aluminium Radiator, fits Ford Mustang GT 2015+
โฌ646.00
Installation Difficulty:
Medium
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
Installation Specs
Medium
DIFFICULTY
4 Parts
PARTS INCLUDED
- • Mishimoto Radiator
- • Mounting Hardware
- • Installed Rubber Trim Seal
- • Lifetime Warranty
1 Resource
INSTALL DOCS
Key Benefits
- Direct fit for 2015+ Ford Mustang GT, standard and performance pack models
- Core designed for maximum efficiency over the performance package radiator
- 52mm, 3-Row core
- 129% increase in coolant capacity over the stock radiator
- 77% increase in coolant capacity over the stock performance package radiator
- 26% increase in coolant surface area (tubes) over the stock performance package radiator
- 55% increase in air surface area (fins) over the stock performance package radiator
- Fully brazed aluminium core
- Fits manual and automatic vehicles
- TIG-welded to perfection
- Includes Magnetic Drain Plug
- Mishimoto Lifetime Warranty
Key Benefits
- Direct fit for 2015+ Ford Mustang GT, standard and performance pack models
- Core designed for maximum efficiency over the performance package radiator
- 52mm, 3-Row core
- 129% increase in coolant capacity over the stock radiator
- 77% increase in coolant capacity over the stock performance package radiator
- 26% increase in coolant surface area (tubes) over the stock performance package radiator
- 55% increase in air surface area (fins) over the stock performance package radiator
- Fully brazed aluminium core
- Fits manual and automatic vehicles
- TIG-welded to perfection
- Includes Magnetic Drain Plug
- Mishimoto Lifetime Warranty
| Overall Length (in) | 23.75 |
|---|---|
| Overall Height (in) | 29.25 |
| Overall Width (in) | 5 |
| Core Length (in) | 25.4 |
| Core Height (in) | 19.9 |
| Core Thickness (in) | 2.05 |
| Fluid Capacity (gal) | 4.3 |
| Rows | 3 |
| Inlet (in) | 1.5 |
| Outlet (in) | 1.26 |
| Drain Plug Thread Size | M12 x 1.5 |
| Engine Codes | 5.0L V8 Coyote |
| Chassis Codes | S550 |
| Coolant Capacity | 4.3 |
Mishimoto Radiator
Mounting Hardware
Installed Rubber Trim Seal
Lifetime Warranty
Mounting Hardware
Installed Rubber Trim Seal
Lifetime Warranty
April 22, 2016
In our last post we took a look at our plans for the Mustang radiator and how we were designing it in Solidworks. Thanks to the speedy design, our first functional prototype is complete and ready for some test fitment!
Straight out of the box, it is quite a hefty unit and should provide some much needed cooling for this GT. Check out some installed photos of our functional prototype.

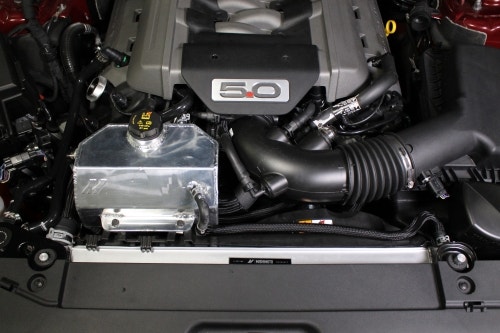

Mustang radiator installed
Mustang radiator installed
Comparison of stock and Mishimoto Mustang radiator
As you can see, the Mishimoto aluminum Mustang radiator is much larger than the stock unit. The end tanks on our Mishimoto unit are around the same width, but we have increased the size of our core to 52mm. This is a significant increase over the stock 25mm as well as the 36mm performance pack.
Mustang radiator installed
There were no issues with clearance, even with our beefy core in place. All Mustang parts, both Mishimoto and stock, fit nicely with our radiator.
Test-fitting Mustang parts
Test-fitting
March 28, 2016
As many of you are aware, we have explored nearly every inch of our GT in a quest to bring you some seriously awesome Mustang parts. While catch cans and oil coolers are exciting, we have a hunch that the most anticipated product is the Mustang radiator. Aluminum radiators are the staple component among our various product lines, so we were excited to show you our progress on this project.
The stock radiator is your run-of-the-mill OEM unit equipped with plastic end tanks. While there is nothing wrong with this setup for the average GT, we still see some room for improvement. First, Ford was on the right track when it equipped it's performance-pack version of the GT with a larger radiator. The performance-pack boasts a 36mm core, compared to the standard GT radiator that comes in at 25mm. We plan to offer our own version, which will have more capacity than either the standard or performance-pack options.
2015 Mustang Parts
2015 Mustang Parts
After having a look at the stock radiators, we
