Hot-Side Intercooler Pipe Kit, fits Ford Fiesta ST 2014+
- Direct fit for the 2014+ Ford Fiesta ST
- +4 whp and +5 wtq gains over the stock hot side pipe with no tuning necessary
- Installs in under 30 minutes
- Replaces the small and restrictive hot side intercooler pipe with 2.5" lightweight mandrel-bent aluminium pipe
- One-piece design for uninterrupted airflow and easy installation
- 51% increased internal volume over the stock hot-side pipe
- Fits with both stock and Mishimoto Fiesta ST intercooler
- Available in a polished or wrinkle black finish
- Includes Mishimoto silicone couplers and Mishimoto T-bolt clamps
- Mishimoto Lifetime Warranty
PRODUCT FEATURES
- Direct fit for the 2014+ Ford Fiesta ST
- +4 whp and +5 wtq gains over the stock hot side pipe with no tuning necessary
- Installs in under 30 minutes
- Replaces the small and restrictive hot side intercooler pipe with 2.5" lightweight mandrel-bent aluminium pipe
- One-piece design for uninterrupted airflow and easy installation
- 51% increased internal volume over the stock hot-side pipe
- Fits with both stock and Mishimoto Fiesta ST intercooler
- Available in a polished or wrinkle black finish
- Includes Mishimoto silicone couplers and Mishimoto T-bolt clamps
- Mishimoto Lifetime Warranty
Description

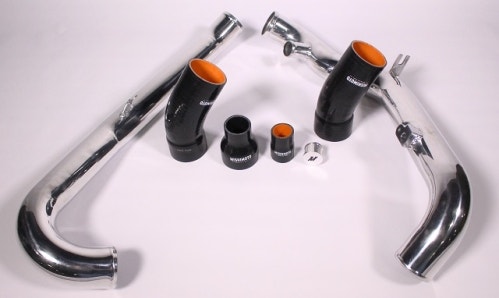

Purchase Includes
(2) Silicone Couplers
(1) 1.75-in T-bolt Clamp
(3) 2.75-in T-bolt Clamps
Mishimoto Lifetime Warranty
| Applications | 2014-2019 Ford Fiesta ST |
|---|---|
| Engine Codes | 1.6L EcoBoost |
| Chassis Codes | B3 |
We are nearing the completion of this project. Our engineering team is ready for dyno testing that will verify any power gains made with our larger-diameter intercooler piping. Exactly how much larger is the piping we designed?
Fiesta ST charge pipe volume comparison hot side
The Mishimoto hot-side design provided the greater increase in volume between the two, coming in at a 51% increase over the stock pipe.
Fiesta ST charge pipe
A few weeks ago we completed our first set of prototype pipes. After a quick evaluation by our team, it was time for a vehicle test fit. Last week we set our Fiesta ST (FIST) up on a lift and began swapping the stock piping for our components.
First, the hot-side pipe was bolted into place.

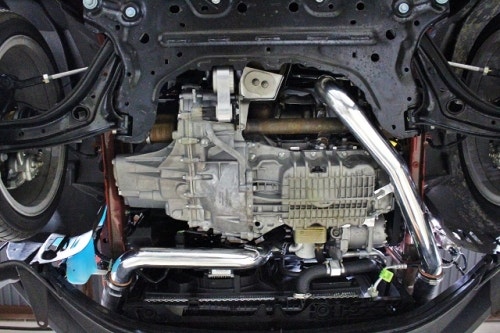

Mishimoto Fiesta ST performance parts installed
The hot-side pipe slid into place perfectly. Our mounting bracket lined up, and the hardware properly secured the pipe into place.
The cold-side pipe was a bit more challenging to install, but soon we had it in place as well.
Good news! Our first prototype intercooler pipe kit is complete. We can now evaluate both fitment and functionality on our Fiesta. Let's take a look at each pipe we created.
Prototype Cold-Side
First we have the more complex pipe of the pair, the cold-side.

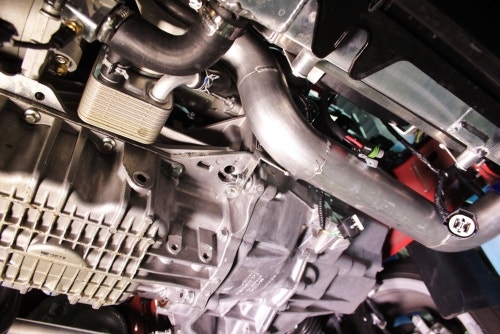

Fiesta ST charge pipe prototype
Complexity comes in the way of multiple bends combined with numerous pipe-mounted features. To the right side of the pipe, you can see the flat flange that serves as a mounting point for the factory pressure sensor. This flange is CNC-machined to provide a proper seal.
Stock Cold-Side Features
We had it pretty easy during the design phase of our hot-side intercooler pipe. A simple design with relatively common features, not overly complicated. The cold-side is a different story.

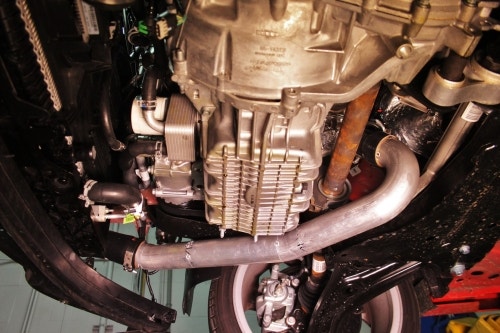

Stock Fiesta ST charge pipe
As you can see, this pipe features a few complex pieces and also follows an unusual path. On the right side at the top of this image, you can see the end of the pipe that mates to the intercooler coupler and hose. This portion of the pipe also houses a pressure sensor, a mounting bracket, and a vacuum-line port.
We have plans for an absolutely awesome intercooler for the Fiesta ST, so it only makes sense to pair it with an equally robust intercooler pipe setup. The stock piping is adequate at best but certainly deserves some attention, because we need to obtain as much airflow as possible from the Fiesta ST. This first portion of R&D will cover the fabrication of our hot-side pipe.
Stock Hot-Side
Before jumping into fabrication, let's first check out the stock hot-side piping assembly!
Stock Fiesta ST hot-side charge pipe
What an interesting piece! The coupler on the end of the pipe mates with the turbocharger compressor outlet, which then runs into metal piping 1.5" in
