Key Features
Features
Direct fit for 2017+ Ford F-150 3.5L EcoBoost
Increased intercooler pipe volume allows for better flow and power potential

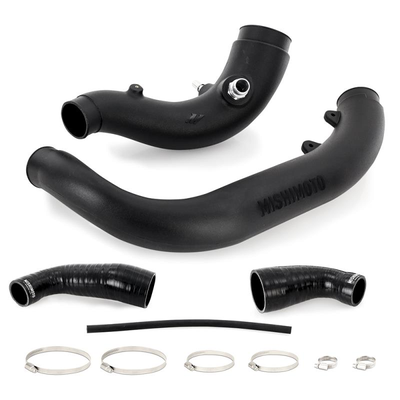

Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
Includes Mishimoto Silicone Boots with DuraCore™ technology for superior resistance to heat, pressure, fuel, and oil
Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
10°F (5.5°C) reduction in intake air temp
77% increase in intercooler internal core volume
163% increase in external fin surface area
All-aluminum, TIG-welded construction
Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
Mishimoto Lifetime Warranty
Note: Coupons and discounts do not apply to items in pre-sale
Mishimoto has developed a direct-fit 2017+ 3.5L F-150 EcoBoost Intercooler & Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor.
Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore™ technology. The larger volume of our pipes allows your 2017+ 3.5L EcoBoost to breathe free and make the most of its two turbochargers. DuraCore™ boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination.
Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77% over stock and external fin surface area by 163%. With cast end tanks and a bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock.
This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2017 3.5L F-150 EcoBoost Intercooler & Pipe kit is backed by our Lifetime Warranty.
Read more
TECH SPECS
More Information
Applications
2017+ Ford F-150 3.5L V6 EcoBoost 2017+ Ford Raptor 3.5L V6 EcoBoost
Engine Codes
3.5L V6 EcoBoost
Maximum Recommended Boost Pressure (PSI)
50
Overall Length (in)
29
Overall Height (in)
9.5
Overall Width (in)
7
Core Type
Bar-and-Plate
Core Thickness (in)
4.7
Core Length (in)
19.6
Core Height (in)
9.4
Inlet (in)
2.5
Outlet (in)
3
Installation Notes
27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.
For our complete warranty policy, please click here.
