Intercooler Kit, fits Chevrolet/GMC 6.6L Duramax 2011-2016
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
- Direct fit for 2011–2016 Chevrolet/GMC 6.6L Duramax LML
- Includes hot-side and cold-side intercooler pipes and boots
- Intercooler features all-aluminium cast end tanks
- 3.5" cold-side and 3.0" hot-side mandrel-bent aluminium polished pipes eliminate restrictive bends
- Intercooler has 101% increase in core volume
- Bar-and-plate core is 73% thicker than factory
- Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
- 42% more internal volume than factory intercooler piping
- Does not require additional tuning
- Reduces turbo stress and extends life

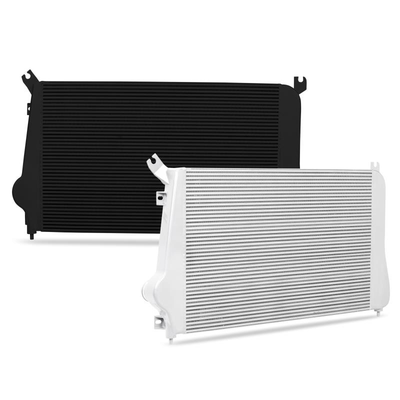

- Intercooler available in Sleek Silver and Stealth Black
- Includes Mishimoto Silicone Boots with DuraCore™ technology and
- Mishimoto Constant-Tension T-bolt Clamps
- Provides improved airflow and lowers intake air temperatures
- Mishimoto Lifetime Warranty
Installation Difficulty: Hard
- Direct fit for 2011–2016 Chevrolet/GMC 6.6L Duramax LML
- Includes hot-side and cold-side intercooler pipes and boots
- Intercooler features all-aluminium cast end tanks
- 3.5" cold-side and 3.0" hot-side mandrel-bent aluminium polished pipes eliminate restrictive bends
- Intercooler has 101% increase in core volume
- Bar-and-plate core is 73% thicker than factory
- Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
- 42% more internal volume than factory intercooler piping
- Does not require additional tuning
- Reduces turbo stress and extends life
- Intercooler available in Sleek Silver and Stealth Black
- Includes Mishimoto Silicone Boots with DuraCore™ technology and
- Mishimoto Constant-Tension T-bolt Clamps
- Provides improved airflow and lowers intake air temperatures
- Mishimoto Lifetime Warranty
Product Description
This Duramax intercooler kit includes Mishimoto silicone boots with DuraCore™ technology and Constant-Tension T-Bolt Clamps for accurate and consistent holding power. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts.
This package is rounded out with the Mishimoto Duramax 6.6L intercooler which features cast aluminium end tanks and a bar-and-plate core, all designed to provide cool, dense air to your engine. The Mishimoto Duramax intercooler features a 101% increase in core volume and is 73% thicker compared to the factory cooler, allowing for cooler intake temperatures, lower EGTs, and increased boost pressure tolerance.
All the components in this kit are engineered to last, just like your truck. Offered with either a Sleek Silver or Stealth Black intercooler, the Mishimoto 6.6L Duramax LML Intercooler Kit, like all of our Duramax performance parts, is protected by our signature Mishimoto Lifetime Warranty.
TECH SPECS
| Applications | 2011-2016 Chevrolet Silverado 2500 HD w/ 6.6L Duramax LML 2011-2016 Chevrolet Silverado 3500 HD w/ 6.6L Duramax LML 2011-2016 GMC Sierra 2500 HD w/ 6.6L Duramax LML 2011-2016 GMC Sierra 3500 HD w/ 6.6L Duramax LML |
|---|---|
| Overall Length (in) | 45.7 |
| Overall Height (in) | 26.2 |
| Overall Width (in) | 5.3 |
| Core Type | Bar-and-Plate |
| Core Thickness (in) | 2.72 |
| Core Length (in) | 36.14 |
| Core Height (in) | 23.01 |
| Inlet (in) | 3 |
| Outlet (in) | 3 |
Downloads
Purchase Includes
(1) Aluminum Intercooler Pipe w/ AIT Sensor Bung
(3) Aluminum Intercooler Pipes
(6) Silicone Boots with DuraCore Technology
(12) Constant-Tension T-Bolt Clamps
(2) Aluminum Mishimoto M Logo Badges
(4) M6 x 1.0 x 20 Bolts & Washers
(2) M8 x 1.25 x 35 Bolts & Washers
Mishimoto Lifetime Warranty
Interested in purchasing this Duramax Intercooler? Check out our product page for more information!
Mishimoto Chevrolet/GMC 6.6L Duramax Intercooler Kit
With our testing complete, it was time to recap the results and see what kind of benefits our cooler was capable of producing. The testing procedures and information from our previous posts are outlined below.
Testing Procedures and Information
Vehicle: 2011 Chevrolet 2500 6.6L LML Duramax
Engine Modifications: None, all factory equipped
Ambient Temperature: 85°F (29.5°C)
Humidity: 35%
Sensors: PLX Pressure and temperature sensors were placed on both the hot-side and cold-side intercooler boots.
Physical Benefits
Before we jump right into the testing data, let's compare the physical aspects of our intercooler design that distinguish our unit from the factory cooler.
Interested in purchasing this Duramax Intercooler? Check out our product page for more information!
Mishimoto Chevrolet/GMC 6.6L Duramax Intercooler Kit
Product Testing and Procedures
The fun part of development is the reveal of our initial prototype design, but the truly exciting part is the testing portion of development. At this point our offices are disrupted by noise from the dyno pulls, tempting a few of our empolyees to filter into the garage and check out the action. Below we see the truck loaded onto the dyno.
LML test truck on dyno
Interested in purchasing this Duramax Intercooler? Check out our product page for more information!
Mishimoto Chevrolet/GMC 6.6L Duramax Intercooler Kit
Prototype Test Fitting
Time to see if this massive intercooler fits! Our prototype design was based on critical dimensions taken from a test vehicle so we could expand the cooler as much as possible without causing fitment concerns. Let's see if we succeeded on our first attempt!
The radiator and intercooler are thicker than the factory units, so we bolted the intercooler prototype to the new Mishimoto radiator prototype. Now attached to each other, we installed them together for the benefit of those customers who would want to purchase both components.
Interested in purchasing this Duramax Intercooler? Check out our product page for more information!
Mishimoto Chevrolet/GMC 6.6L Duramax Intercooler Kit
Prototype 3D Design
Now that we outlined our project goals and had all the test data from the factory intercooler, our engineers were ready to design a prototype intercooler. Using dimensional data from a rendering of the truck as well as the actual measurements we took from the test vehicle and factory intercooler, our team was able to create a very nice looking prototype. Check out a couple renderings of the design!
Mishimoto prototype intercooler rendering
Interested in purchasing this Duramax Intercooler? Check out the product page for more information!: Intercooler Kit, fits Chevrolet/GMC 6.6L Duramax 2011-2016
Welcome back! In our last segment we removed the factory intercooler so we could determine if this project would even be necessary. The good news is, all that work was not for nothing; our team found several aspects of the factory intercooler that could be improved. Check out a few more detailed images of the factory intercooler.
First, a peek at that interesting metal end tank we discussed in part 1 of this article.
Factory LML intercooler metal hot-side end tank
Interested in purchasing this Duramax Intercooler? Check out our product page for more information!
Mishimoto Chevrolet/GMC 6.6L Duramax Intercooler Kit
Product Introduction
The LML Duramax is the cleanest and most powerful Duramax thus far. The innovations made for this new model are quite substantial and are a direct result of serious advances in automotive technology. Unfortunately, stricter emissions standards of today result in the inclusion of a DPF (diesel particulate filter) system, which improves emissions yet hampers fuel mileage.
Luckily, not all the innovations for newer Durmax models are in place to provide cleaner air; several features of the new engine are in place for improved performance and reliability. Among the long list of improvements, a few highlights include a quick-spooling VGT turbocharger, a factory-equipped exhaust brake, upgraded designs of the main
